How to set-up Pi-Star on FreeDMR
Click on Configuration.
Run Pi-Star UPDATE first.
After the update is finished, click on Configuration again.

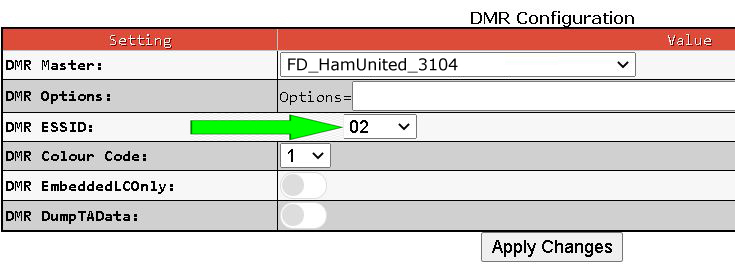

In DMR Master, select: FD_Hamunited_3104
If using more than one hotspot, add an ESSID to your DMR ID (e.g. 1234567 – 123456702)
Click Apply Changes.
Run Pi-Star Calibration to bring the hotspot inline with the radio (must be under 1% BER loss).
See this link if you wish to use: DMR Options - Static Talk Groups
If using DMR Gateway
Full Edit: DMR Gateway
Set the Configuration page to DMR Gateway and click Apply.
Then navigate to “Configuration → Expert → Full Edit: DMR GW”.
Replace the [DMR Network 1] section as shown below:
[DMR Network 1]
Enabled=1
Address=3104.hamunited.com
Port=62031
TGRewrite=2,9,2,9,1
PassAllPC=1
PassAllTG=1
PassAllPC=2
PassAllTG=2
Password=passw0rd
Debug=0
Id=
Options= (See DMR Options link)
Location=0
Click Apply.
From now on, make all changes in Full Edit: DMR GW. Do not use Configuration or Quick Edit for DMR GW settings.
If using multiple networks, you'll need to write custom rewrite rules for Dial-a-TG and Talk Groups.
